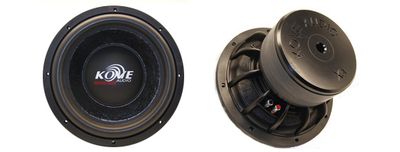

KOVE X12 Armageddon D1





Produkteigenschaften

Eextra starke und sehr leichte 3“ Aluminium flachdraht coil, 550 Oz Motor, stabile Kevlar- Papier Membrane, vierfach zentriert, Aluminium Guss Korb, KOVE Aircomp Kühlsystem. Extra High efficient.

  • Power P 1300 / 6000* RMS/SPL
  • DC resistance Rdc 0,9 + 0,9 ?
  • Nominal impedance ZN 1,0 + 1,0 ?
  • Resonance frequency fs 39,8 Hz
  • Voice coil Dianeter 2,5 inch
  • Shipping weight 17,8 kg
  • Mechanical Q factor Qms 4,65
  • Electrical Q factor Qes 0,51
  • Total Q factor Qts 0,46
  • Diameter Moving mass Mms 166,9 g
  • Effective cone area Sd 430 cm2
  • External diameter 315 mm
  • Mechanical resistance Rms 0 Kg/s
  • Installation diameter 280 mm
  • Compliance Cms 0,1 mm/N
  • Installation depth 186 mm
  • Force factor BL 16,2 Tm
  • Magnet diameter 180 mm
  • Equivalent air volume Vas 50,8 dm3
  • X max tot./lin. 80 / 40 mm
  • Magnet weight 6,5 / 230 kg/oz
  • D1 = 315mm
  • SPL 2,83V/1m 91 dB








Preis:
705,00 €
incl. MwSt.
zzgl. Versandkosten

 Menge:
