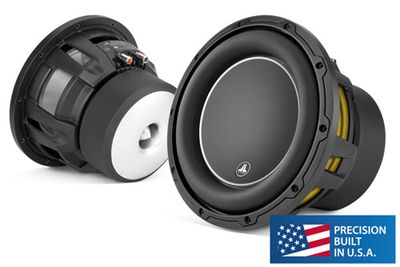

JL AUDIO 10W6v3-D4 Subwoofer 250mm 600W
W6v3 Subwoofer Drivers
Unparalleled subwoofer fidelity and excellent output in very compact sealed enclosures.
What if speaker design compromises could be managed to create exceptional sound quality and output in very compact enclosures? This is a question that JL Audio has been answering since the original W6 subwoofer drivers were launched in 1993. Built alongside the flagship W7AE’s in our Miramar, Florida factory, the W6v3 subwoofer drivers share many of the W7AE’s groundbreaking technologies to keep distortion well below audibility throughout the driver’s dynamic range. The result is detailed, powerful bass that will please the most demanding listener..
Was, wenn im Tieftöner-Design Kompromisse erreicht werden können, die außergewöhnliche Klangqualität und hohe Leistung in sehr kompakten Gehäusen ermöglichen? Die Antwort darauf gibt JL Audio, seitdem die ursprünglichen W6 Woofer 1993 an den Start gingen. Die ebenfalls in Miramar, Florida gebauten W6v3 Subs teilen sich viele der bahnbrechende Technologien mit den W7AE Flaggschiffen, um Verzerrungen zu minimieren und den gesamten Dynamikbereich zu verbessern. Das Ergebnis sind detaillierte, kraftvolle Bässe, die den anspruchsvollsten Hörern gefallen werden.
Key Technologies:
• DMA-optimized motor systems = lower distortion & higher output
• Highly linear, FEA-optimized suspension = lower distortion and improved reliability
• OverRoll Surround = extreme excursion without losing cone area
• Elevated Frame Cooling System = improved power handling by venting coil directly
• Plateau Reinforced Spider Attach (RC) = mechanical reinforcement of spider
• FCAM Assembly System = improved moving parts alignment
• Lead Wire Management System = improved lead wire with no effect on spider
10W6v3-D4
25 cm Subwoofer Driver
600 Watts, Impedance 2 x 4 Ohms
Aluminium-Diecast-Basket with Trim-Ring, Dual-Magnet,
Fs 30.1 Hz, Qes 0.543, Qms 9.228, Qts 0.513
Re (serial) 6.45 Ohm, Vas 23.25 L, 82.7 dB (1W/1m)
‡ 175 mm, Ø 229 mm
EUR* 599,00
