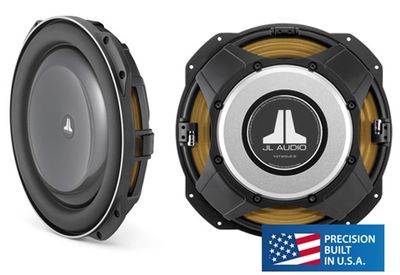

JL AUDIO 13TW5v2-2 Subwoofer 340mm 600W
TW5v2 Thin Subwoofer Drivers
The thinnest subwoofer driver in its class delivers premium JL Audio performance in difficult spaces.
Our patented thin-line woofer technology compresses the architecture of the TW5v2 models using a “concentric tube” structure that supports the 17,8 cm diameter voice coil and the suspension attachments. This permits placement of the large motor structure much further forward in the speaker than with conventional designs, while allowing excellent linear excursion capability and mechanical stability. To unleash even more performance from this technology, the v2 improves upon the original TW5 woofers with 13% greater linear excursion capability. The cast alloy chassis has also been modified for greater strength and the redesigned motor now features an annular vent.
Die patentierte Thin-Linie Subwoofer-Technologie der TW5v2 Modelle wird mittels einer durchdachten, konzentrischen Röhrenstruktur erreicht, welche die 17,8 cm Schwingspule und deren Aufhängung bestens unterstützt. Dies erlaubt die Platzierung des großen Magnetantriebs viel weiter vorne im Lautsprecher als bei herkömmlichen Designs ohne auf ausgezeichnete lineare Auslenkung und mechanische Stabilität verzichten zu müssen. Um noch mehr Leistung entfesseln zu können, wurde die lineare Auslenkung der TW5v2 Subs gegenüber den Vorgängermodellen um 13% vergrößert . Die neuen Aluguss-Körbe besitzen zudem eine höhere Festigkeit und der neu gestaltete Magnetantrieb verfügt nun über eine Ringöffnung zur bessern Kühlung.
Key Technologies:
• DMA-optimized motor systems = lower distortion & higher output
• Highly linear, FEA-optimized suspension = lower distortion and improved reliability
• Elevated Frame Cooling System = improved power handling by venting coil directly
• FCAM Assembly System = improved moving parts alignment
• Lead Wire Management System = improved lead wire with no effect on spider
• Extremely Shallow Mounting Depth, only 65 cm thin
• Extremely Small Sealed Enclosure Volume Requirements
• Patented “Concentric Tube” Suspension Design
• Patented “Floating Cone Attach Method” Technology
• Other U.S. and International Patents Pending
13TW5v2-2
34 cm Thin Subwoofer Driver
600 Watts RMS, Impedance 2 Ohms
Ultra-slim Diecast-Basket (patented)
Injection Molded, Mica-Filled Poly-Cone
VC = 7“ (178 mm), linear Xmax +/- 10.9 mm
‡ 67 mm, Ø 318 mm
EUR* 749,00
