Produkteigenschaften

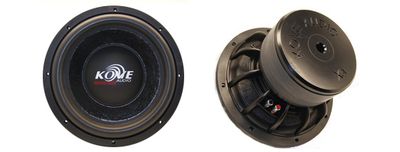

Eextra starke und sehr leichte 3“ Aluminium flachdraht coil, 550 Oz Motor, stabile Kevlar- Papier Membrane, vierfach zentriert, Aluminium Guss Korb, KOVE Aircomp Kühlsystem. Extra High efficient.

• Power P 1300 / 5000* RMS/SPL
• DC resistance Rdc 1,9 + 1,9 ?
• Nominal impedance ZN 2,0 +2,0 ?
• Resonance frequency fs 34,6 Hz
• Voice coil Dianeter 2,5 inch
• Shipping weight 18,3 kg
• Mechanical Q factor Qms 7,97
• Electrical Q factor Qes 0,52
• Total Q factor Qts 0,49
• Diameter Moving mass Mms 219,7 g
• Effective cone area Sd 754 cm2
• External diameter 389 mm
• Mechanical resistance Rms 0 Kg/s
• Installation diameter 358 mm
• Compliance Cms 0,08 mm/N
• Installation depth 227 mm
• Force factor BL 16,1 Tm
• Magnet diameter 180 mm
• Equivalent air volume Vas 86,5 dm3
• X max tot./lin. 80 / 40 mm
• Magnet weight 6,5 / 230 kg/oz
• D1 = 389mm
• SPL 2,83V/1m 93 dB
